Descripción

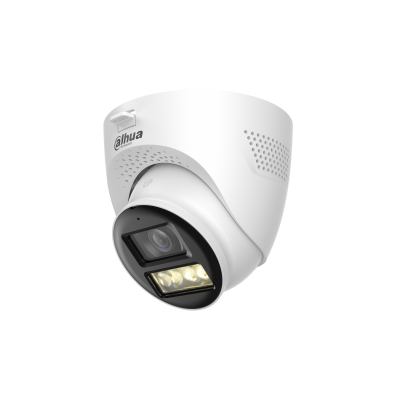

CÁMARA DAHUA DOMO TWO WAY TALK 2MP 2.8MM IR40 DH-HAC-HDW1200TQN-IL-T



Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Scanning SystemProgressive
Electronic Shutter SpeedPAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s
Min. Illumination0.01 lux@F2.0 (Color, 30 IRE)
0.001 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio>65 dB
Illumination Distance40 m (131.23 ft)
Illuminator On/Off ControlAuto;Manual
Illuminator Number4 (Multi-core light)
Angle AdjustmentPan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens TypeFixed-focal
Lens MountM12
Focal Length2.8 mm; 3.6 mm
Max. ApertureF2.0
Field of View2.8 mm: H: 111.3°; V: 60.8°; D: 134.2°
3.6 mm: H: 89°; V: 48.2°; D: 109.1°
Close Focus Distance2.8 mm: 0.5 m (1.64 ft)
3.6 mm: 0.7 m (2.30 ft)
DORI Distance
LensDetectObserveRecognizeIdentify
2.8 mm40.6 m
( 133.20 ft)		16.2 m
( 53.15 ft)		8.1 m
( 26.57 ft)		4.1 m

( 13.45 ft)
3.6 mm49.9 m
( 163.71 ft)		20.0 m
( 65.62 ft)		10.0 m
( 32.81 ft)		5.0 m

( 16.40 ft)
*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Video
Video Frame RateCVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps;
AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps;
TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps;
CVBS: PAL: 960H; NTSC: 960H
Resolution1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/NightAuto(ICR)/Color/B/W
BLCBLC; HLC; WDR; HLC-Pro
WDRDWDR
White BalanceAuto
Gain ControlManual;Auto
Noise Reduction3D NR
Illumination ModeSmart IR&WL (CVI, TVI); WL Mode; IR Mode
MirrorYes
Pick-up Distance8 m (26.25 ft)
Certification
CertificationsCE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
Audio
Built-in MicYes, up to 8 m (26.25 ft)
Camera AudioCVI; TVI
Two-way TalkYes (CVI, TVI)
SpeakerYes, up to 8 m (26.25 ft)
Port
Video OutputVideo output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
Power
Power Supply12 VDC (±30%) (It is recommended to use a power adapter to supply the power for one camera)
Power ConsumptionMax 9.37 W (12 VDC, IR on)
Environment
Operating Temperature–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity<95% (RH), non-condensing
Storage Temperature–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity<95% (RH), non-condensing
ProtectionIP67
Anti-corrosion LevelBasic Protection
Structure
Casing MaterialDome (metal + plastic) + plastic enclosure
Product DimensionsΦ109.9 mm × 105.9 mm (Φ4.33" × 4.17")
Net Weight0.32 kg (0.71 lb)
Gross Weight0.44 kg (0.97 lb)
InstallationWall mount; ceiling mount; vertical pole mount
