2DF8C442IXG

Descripción

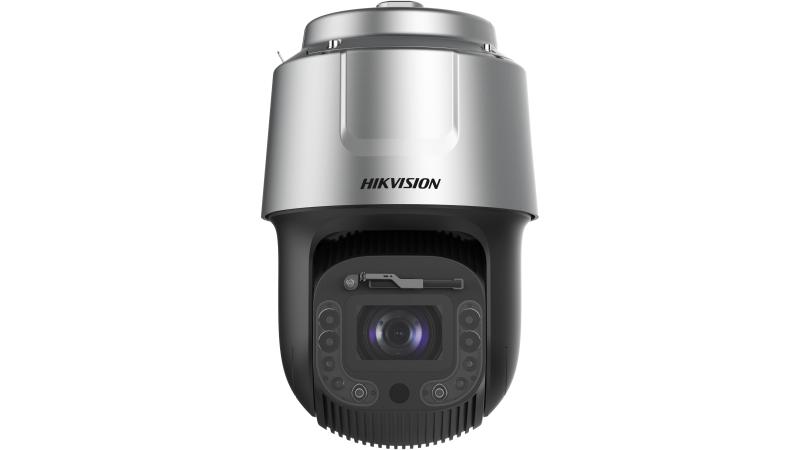

Camara PTZ Hikvision 42x 4MP IP67 IK10 IR400 PoE DS-2DF8C442IXG-ELW

Cámara
Sensor de imagen
1/1.8" progressive scan CMOS
Iluminación mínima
Color: 0.001 Lux @ (F1.2, AGC ON), B/W: 0.0005 Lux @ (F1.2，AGC ON), 0 Lux with IR
Velocidad de obturación
1/1 s to 1/30,000 s
Obturador lento
Yes
Día y Noche
IR cut filter
Zoom
42x optical, 16x digital
Max. Resolución
2560 × 1440
Lente
Enfoque
Auto, semi-auto, manual, rapid focus
Longitud focal
6.0 mm to 252 mm
Velocidad del Zoom
Approx. 4.5 s
FOV
Horizontal field of view: 56.6° to 1.7° (wide-tele),

Vertical field of view: 33.7° to 0.9° (wide-tele),

Diagonal field of view: 63.4° to 1.9° (wide-tele)

Apertura
Max. F1.2
Iluminador
Tipo de luz suplementaria
IR
Rango de luz suplementaria
up to 400 m
Luz de suplemento inteligente
Yes
PTZ
Rango de movimiento (pan)
360°，Smart Pan-Tilt Correction
Rango de movimiento (tilt)
-20° to 90° (auto flip)，Smart Pan-Tilt Correction
Velocidad de movimiento horizontal (pan)
Pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
Velocidad de vertical (tilt)
Tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
Proportional Pan
Yes
Preajustes
300
Escaneo de patrulla
8 patrols, up to 32 presets for each patrol
Patrón de escaneo
4 pattern scans, record time over 10 minutes for each scan
Memoria de apagado
Yes
Acción del parque
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
Posicionamiento 3D
Yes
Pantalla de estado de PTZ
Yes
Congelación preestablecida
Yes
Tarea programada
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Vídeo
Main stream
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);

60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub-stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Compresión de vídeo
Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264/MJPEG

Vídeo bitrate
32 Kbps to 16384 Kbps
Tipo H.264
Baseline Profile/Main Profile/High Profile
Tipo H.265
Main Profile
Codificación de video escalable (SVC)
H.264 and H.265 encoding
Región de interés (ROI)
8 fixed regions for each stream
Audio
Compresión de audio
G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM，AAC_LC
Velocidad de bits de audio
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)16 Kbps to 64 Kbps(AAC_LC)
Red
Almacenamiento en red
NAS (NFS, SMB/ CIFS), ANR
Protocolos
IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour，WebSocket，WebSockets
API
ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T)，OTAP
Vista en vivo simultánea
Up to 20 channels
Usuario/operador
Up to 32 users 3 user levels: administrator, operator, and user
Seguridad
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address)
Cliente
HikCentral, iVMS-4200, Hik-Connect
Navegador web
IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+
Imagen
Interruptor día/noche
Day, night, auto, scheduled-switch
Mejora de la imagen
BLC, HLC, 3D DNR
Wide Dynamic Range (WDR)
140 dB
Desempañar
Yes
Image Stabilization
EIS (Built-in gyroscope to improve EIS performance)
Exposición regional
Yes
Enfoque regional
Yes
Configuración de imagen
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Interruptor de parámetros de imagen
Yes
Máscara de privacidad
Up to 24 masks, mosaic mask, mask color configurable, rectangle region
SNR
≥ 52 dB
Interfaz
Salida de Vídeo
1.0 V[p-p]/75 Ω, PAL, NTSC, BNC connector
Ethernet Interface
1 RJ45 10M/100M self-adaptive Ethernet port
Almacenamiento a bordo
Built-in memory card slot, support microSD/microSDHC/microSDXC cards, up to 256 GB
Alarma
7 inputs, 2 outputs
Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
RS-485
Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
Evento
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,audible warning,and PTZ actions (such as preset, patrol scan, pattern scan)
Evento Básico
motion detection, video tampering alarm, alarm input, alarm output, exception
Evento inteligente
Line crossing detection, region entrance detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, vandal-proof alarm, audio exception detection
Seguimiento inteligente
Manual tracking, auto-tracking
Deep Learning Function
Captura de la cara
Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face
Comparación de rostros
Yes
Protección perimetral
Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)

Tráfico por carretera y detección de vehículos
Tráfico en la carretera
Support vehicle detection (license plate number,vehicle model, and vehicle color recognition)
General
Operating Condition
Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
Idioma
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Consumo de energía y corriente
24 VAC (Max. 62 W, including max. 12 W for IR and max. 8 W for heater), PoE 802.3 bt (Max. 51 W, including max. 12 W for IR and max. 8 W for heater)
Limpiador de lente
Yes. Rain-sensing auto control
Dimensión
Ø 267 mm × 430 mm (Ø 10.51" × 16.93")
Approx. 9.6 kg (21.16 lb.)
Certificaciones
EMC
FCC SDoC (47 CFR Part 15, Subpart B);

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

RCM (AS/NZS CISPR 32: 2015);

IC VoC (ICES-003: Issue 6, 2019);

KC (KN 32: 2015, KN 35: 2015)

Seguridad
UL (UL 62368-1)

CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

CE-LVD (EN 62368-1:2014+A11:2017),

BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);

LOA (SANS IEC60950-1)

Ambiente
CE-RoHS (2011/65/EU); WEEE (2012/19/EU);

Reach (Regulation (EC) No 1907/2006)

Protección
IP67 Standard, IK10 (IEC 62262:2002), 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
