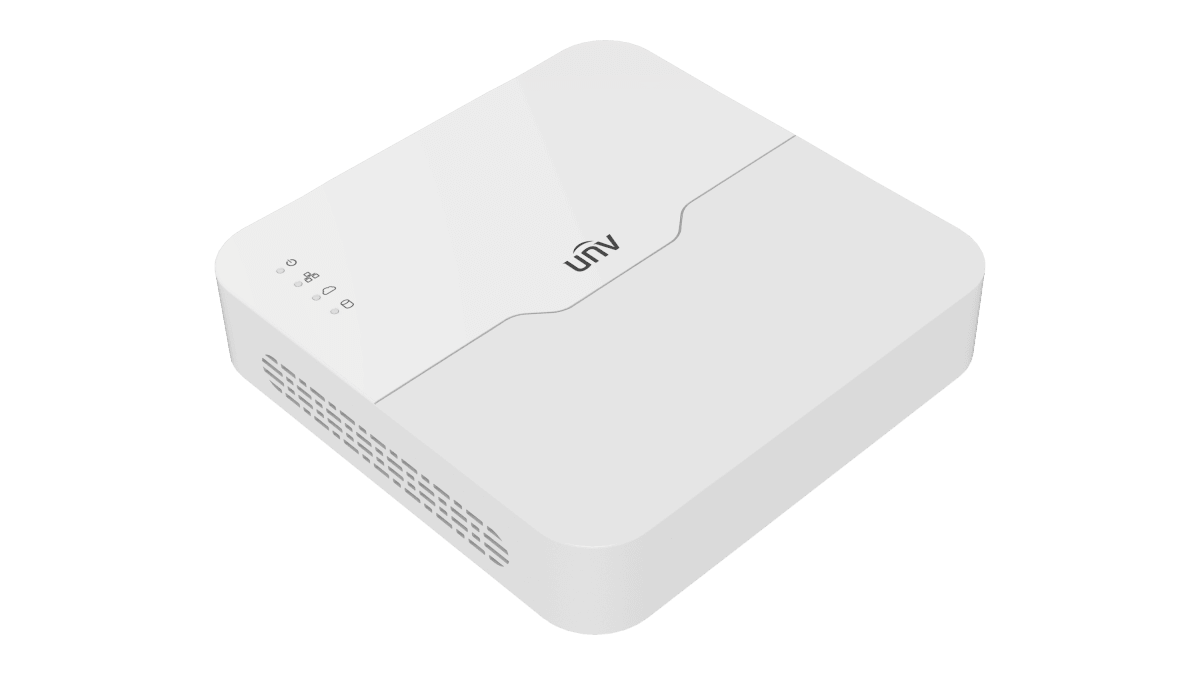

NVR UNV NVR301-08B-LP8-IQ POE 4K 80Mbps 8-ch 1 SATA interface Smart reconocimiento facial 1U

Support Ultra 265/H.265/H.264 video formats
8-channel input
Plug & Play with 8 independent PoE network interfaces
Support mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols
Support HDMI and VGA simultaneous output
Up to 12 Megapixels resolution recording
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade

Decoding Format Ultra 265,H.265,H.264
Decoding Capability
NVR301‑08B‑LP8‑IQ:Smart Off：2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30
Smart On：2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30
Audio Compression G.711A, G.711U
Network Description
Incoming Bandwidth 80Mbps
Outgoing Bandwidth 80Mbps
Remote Users 128
TCP/IP Protocols; P2P; NTP; DHCP; PPPoE; HTTP; HTTPS; DNS; DDNS; SNMP; SMTP; RTSP; IPv6; IPv4
Browser(Plugin) Windows:IE(IE10/11),Firefox (version 52.0 and above),Chrome(version 45 and above),Edge(version 79 and above)
Video/Audio Input Description
IP Video Input
NVR301‑08B‑LP8‑IQ:8‑ch
RCA Audio Input 1‑ch
Video/Audio Output Description
HDMI Output 4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA Output 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
RCA Audio Output 1‑ch
Liveview Display
NVR301‑08B‑LP8‑IQ:1/4/6/8/9
Corridor Mode Screen
NVR301‑08B‑LP8‑IQ:3/4/5/7/9
Two-way Audio Description
Two-way Audio 1‑ch,RCA(Using the audio input and output)
Snapshot Description
FTP/Schedule/Event Snapshot 4‑ch snapshot,up to D1 resolution
Recording Description
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
Num of Concurrent Playback 16‑ch
Smart Description
VCA Detection by IPC Face Detection; face detection; Vehicle Detection; SIP(Intrusion Detection,Cross Line Detection,Enter Area,Leave Area); Ultra Motion Detection (UMD); People Counting(People Flow Counting,Crowd Density Monitoring); Traffic Monitoring
Smart by NVR face detection; Smart Intrusion Prevention (SIP); Ultra Motion Detection(UMD)
VCA Search Motor Vehicle Search; Non‑Motor Vehicle Search; Human Body Search; GeneralSearch; People Counting Report; Heat Map
Smart by IPC All channels (up to 8 images/s in total)Face Detection,face detection,Vehicle Detection,SIP,UMD,Traffic Monitoring
Search by Image Support
SIP by NVR 2‑ch
UMD by NVR 4‑ch
Alarm Description
General Alarm Defocus Detection; Scene Change Detection; Object Left Behind; ObjectRemoved; Auto Tracking; Motion Detection; Tampering; Human Body Detection; Video Loss; AlarmInput; Audio Detection
Alert Alarm IP Conflict; Network Disconnected; Disk Offline; Disk Abnormal; Illegal Access; Hard Disk Space Low; Hard Disk Full; Abnormal Recording/Snapshot
GUI Language Description
GUI Language 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk Description
SATA 1 SATA Interfaces
Capacity Up to 10TB for each HDD (The maximum HDD capacity varies with environment temperature)
External Interface Description
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Rear panel: 1 x USB2.0, 1 x USB3.0
RS485 N/A
RS232 N/A
Alarm In N/A
Alarm Out N/A
Power Supply
NVR301‑08B‑LP8‑IQ/NVR301‑16B‑LP8‑IQ:DC 52V/1.8A
Power Switch Support
PoE Description
PoE Interface self‑adaptive Ethernet Interface
NVR301‑08B‑LP8‑IQ:8 RJ45 10M/100M self‑adaptive Ethernet
NVR301‑08B‑LP8‑IQ/NVR301‑16B‑LP8‑IQ:Max 30W for single port,Max 75W in total
Supported Standard IEEE 802.3at,IEEE 802.3af
Working Environment Description
Working Temperature -10°C ~ + 55°C (+14°F ~ +131°F)
Working Humidity ≤ 90% RH (non-condensing)
Power Consumption (without HDD) ≤ 12W
Dimensions Description
Weight (without HDD) NVR301‑04B‑LP4‑IQ:≤ 2.7Kg (6.0lb)
NVR301‑08B‑LP8‑IQ/NVR301‑16B‑LP8‑IQ:≤ 4Kg (8.8lb)
Height 1U
NVR301‑08B‑LP8‑IQ/NVR301‑16B‑LP8‑IQ:270mm × 212mm × 46mm
