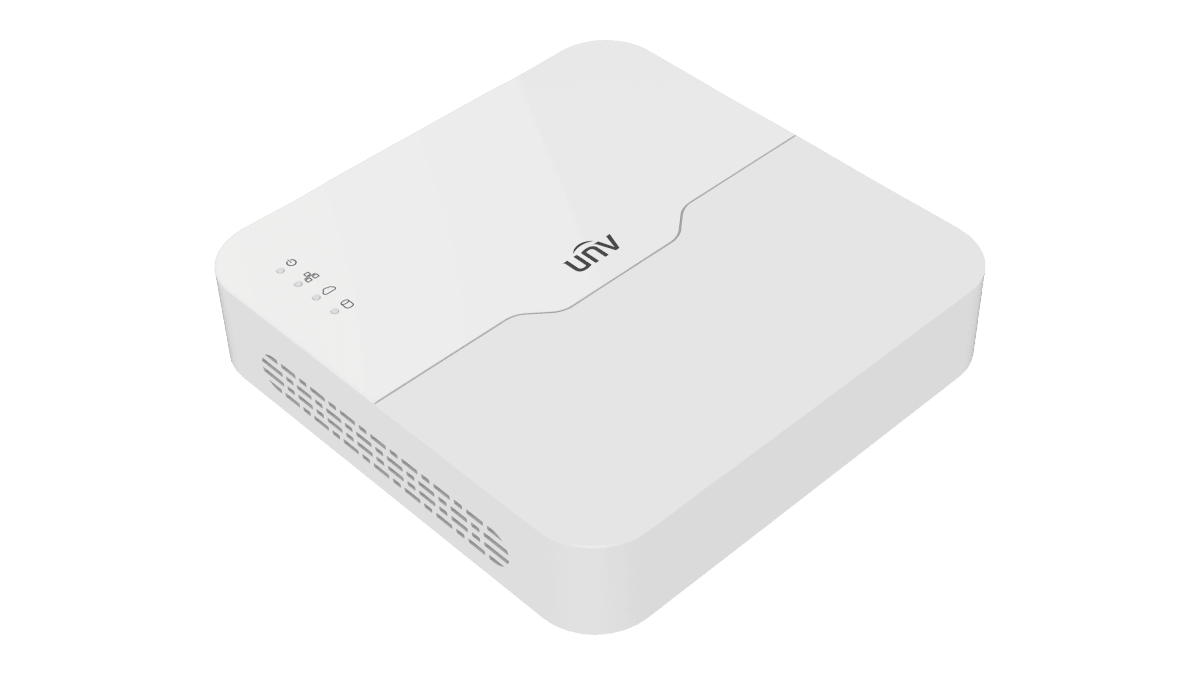

NVR UNV NVR301-04B-LP4-IQ POE 4K 80Mbps 4-ch 1 SATA interface Smart reconocimiento facial 1U

Support Ultra 265/H.265/H.264 video formats
4-channel input
Plug & Play with 4 independent PoE network interfaces
Support mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T ) and RTSP protocols
Support HDMI and VGA simultaneous output
Up to 12 Megapixels resolution recording
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade

NVR301-04B-LP4-IQ
Decoding
Decoding Format Ultra 265,H.265,H.264
Decoding Capability Smart Off：2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30
smart On：2 x 4K@30, 4 x 4MP@30
Decoding Capability Description The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width
Audio Compression G.711A, G.711U
network
Incoming Bandwidth 80 Mbps
Outgoing Bandwidth 80 Mbps
Remote Users 128
Protocols TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4
Browser (Plugin) IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Video/Audio Input
IP Video Input 4-ch
RCA Audio Input 1-ch
Video/Audio Output
HDMI Output 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
RCA Audio Output 1-ch
Liveview Display 1/4
Corridor Mode Screen 3/4 3
Two-way Audio
Two-way Audio 1-ch,RCA(Using the audio input and output)
Snapshot
FTP/Schedule/Event Snapshot 4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution)
Recording
Recording Resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Num of Concurrent Playback 16-ch
smart
VCA Detection by IPC Face Detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), People Counting (People Flow Counting, Crowd Density Monitoring), Traffic Monitoring
Smart by NVR Face Detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD)
VCA Search Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, AcuSearch
Smart by IPC All channels (up to 8 images/s in total)Face Detection,Vehicle Detection,SIP,UMD,Traffic Monitoring
Search by Image Support
SIP by NVR 2-ch
UMD by NVR 4-ch
Alarm
General Alarm Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
GUI Language
GUI Language 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA 1 SATA Interfaces
Capacity Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature)
External Interface
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Rear panel: 1 × USB2.0, 1 × USB3.0
RS485 N/A
RS232 N/A
Alarm In N/A
Alarm Out N/A
Power Supply DC 48V/1.35A DC 52V/1.8A DC 52V/1.8A
Power Switch N/A
PoE
PoE Interface 4 RJ45 10M/100M self-adaptive Ethernet Interface 8 RJ45 10M/100M self-adaptive Ethernet Interface 8 RJ45 10M/100M self-adaptive Ethernet interface
Max Power Max 30W for single port,Max 50W in total Max 30W for single port,Max 75W in total Max 30W for single port,Max 75W in total
Supported Standard IEEE 802.3at,IEEE 802.3af
Working Environment
Working Temperature -10℃ ~ +55℃ (+14℉ ~ +131℉)
Working Humidity ≤ 90% RH (non-condensing)
Power Consumption (without HDD) ≤ 12W
Dimensions
Weight (without HDD) ≤ 2.7Kg (6.0lb) ≤ 4Kg (8.8lb) ≤ 4Kg (8.8lb)
Height 1U
Dimensions 205mm × 212mm × 46mm (8.1"×8.3"×1.8") 270mm × 212mm × 46mm (10.6"×8.3"×1.8") 270mm × 212mm × 46mm (10.6"×8.3"×1.8")
