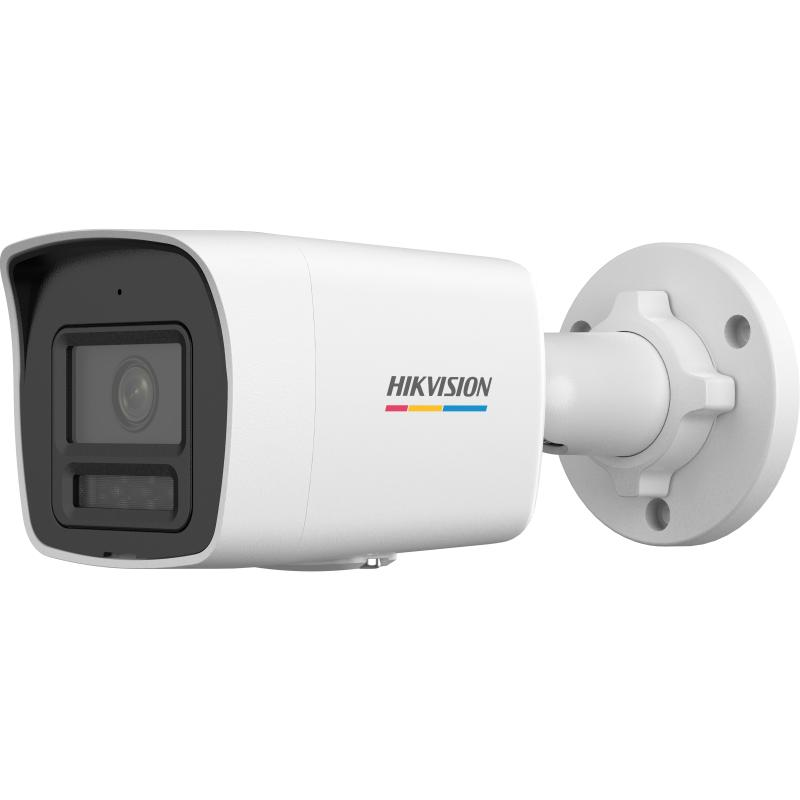

Camara IP 2MP Hikvision Acusence Colorvu 3.0 Dual light IR 30MT MD 2.0 Microfono IP67 DS-2CD1027G3-LIU
- Cámara
- Sensor de imagen1/2.8" Progressive Scan CMOS
- Max. Resolución1920 × 1080
- Iluminación mínimaColor: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
- Tiempo de obturación1 s to 1/100,000 s
- Día y NocheIR cut filter
- Ajuste de ánguloPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
- Lente
- LenteFixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
- Montura del lenteM12
- Iris TypeFixed
- AperturaF1.0
- Depth of Field
- DORI
- DORI
- Iluminador
- Tipo de luz suplementariaIR,White Light
- Rango de luz suplementariaUp to 30 m
- Luz de suplemento inteligenteYes
- IR Wavelength850 nm
- Vídeo
- Main stream
- Sub-stream
- Compresión de videoMain stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
- Vídeo bitrate32 Kbps to 8 Mbps
- Tipo H.264Baseline Profile,Main Profile,High Profile
- Tipo H.265Main Profile
- Bit Rate ControlCBR,VBR
- Codificación de video escalable (SVC)H.264 and H.265 encoding
- Región de interés (ROI)1 fixed region for main stream and sub-stream
- Audio
- Tipo de audioMono sound
- Compresión de audioG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
- Velocidad de bits de audio64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)/8 to 160 Kbps(MP3)
- Frecuencia de muestreo de audio8 kHz/16 kHz
- Filtro de ruido ambientalYes
- Red
- ProtocolosTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP
- Vista en vivo simultáneaUp to 6 channels
- APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK
- Usuario/operador
- SeguridadPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- ClienteiVMS-4200;Hik-Connect
- Navegador web
- Imagen
- Configuración de imagenRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Interruptor día/nocheDay,Night,Auto,Schedule
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Mejora de la imagenBLC,HLC,3D DNR
- Máscara de privacidad4 programmable rectangular privacy masks
- Interfaz
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- Micrófono incorporadoYes,1 built-in microphone
- Evento
- Evento BásicoMotion detection (support alarm triggering by specified target types (person and vehicle)), video tampering alarm, exception
- LinkageUpload to memory card/FTP,notify surveillance center,send email,trigger capture
- Deep Learning Function
- Perimeter Protection
- General
- alimentación12 VDC ± 25%, 0.55 A, max. 6.6 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8.0 W,
- MaterialFront cover: metal, body: plastic, bracket: plastic
- Dimensión69.1 mm × 66.9 mm × 172.9 mm (2.7" × 2.6" × 6.8")
- Dimensión del paquete216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.7")
- Approx. 330 g (0.73 lb.)
- Con peso del paqueteApprox. 445 g (0.98 lb.)
- Condiciones de almacenaje-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- IdiomaEnglish, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German
- Función generalHeartbeat,mirror,flash log,password reset via email,password protection,anti-banding
- Certificaciones
- EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
- Seguridad
- Ambiente
- ProtecciónIP67: IEC 60529-2013
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
CB: IEC 62368-1: 2014+A11
Line crossing, Intrusion,
Support alarm triggering by specified target types (human and vehicle)
Plug-in required live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+
Up to 32 users
3 user levels: administrator, operator, and user
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m
4 mm, D: 53 m, O: 21 m, R: 10 m, I: 5 m
2.8 mm: 1.2 m to ∞
4 mm: 1.3 m to ∞
2.8 mm, horizontal FOV 106°, vertical FOV 56°, diagonal FOV 129°
4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 103°
